Hello everyone,
As the GSoC come to an end, I would like to sum up what I have done for the past 4 months. For my GSoC project, I have been working on the Interconvertible Layout program for CellDesigner. This project implements a converter that turns CellDesigner annotation into SBML Layout package and vice versa, preserving the biochemical network layouts when handling the model in different softwares.
Here is a link to this project's repository.
https://github.com/funasoul/celldesigner-parser
For my last result, I will present the conversion of influenza model (Matsuoka,Y. BMC systems biology 7.1 (2013): 1.) and Core metabolism model of E.coli (http://escher.github.io/) converted with EscherConverter.
CellDesigner to SBML Layout
SBML Layout to CellDesigner
Finally, I would like to thank Google Summer of Code, NRNB, and SBML team for giving me this opportunity and my mentors Dr. Dräger and Dr. Funahashi for their support.
GSoC 2016 - CellDesigner
Monday, August 22, 2016
Wednesday, August 17, 2016
Final week (week 16)
Hi all,
Only few more days are left until I submit my work. And last week, I left off with some unfinished tasks. Here are the todo list from last week. Darker blue means for the conversion from SBML Layout to CellDesigner Annotation and lighter blue means for the conversion from CellDesigner Annotation to SBML Layout.
For this week, I have mainly worked on 1st, 3rd, and 4th tasks. As for the conversion of bezier curve, I have converted the bezier curve into line segments, since CellDesigner does not allow a bezier curve with the reaction with one reactant and one product.
For the 3rd task, I have added conversion for reaction with modifiers with branches.
Also, for the 4th task, adjusting the arrowhead, I have moved the end point of the line segment to go to the boundary of the glyph.
Additionally, I have fixed the conversion for FBC package. I have added the conversion for reaction with boolean logic operators.
Only few more days are left until I submit my work. And last week, I left off with some unfinished tasks. Here are the todo list from last week. Darker blue means for the conversion from SBML Layout to CellDesigner Annotation and lighter blue means for the conversion from CellDesigner Annotation to SBML Layout.
For this week, I have mainly worked on 1st, 3rd, and 4th tasks. As for the conversion of bezier curve, I have converted the bezier curve into line segments, since CellDesigner does not allow a bezier curve with the reaction with one reactant and one product.
Bezier original |
Bezier converted |
For the 3rd task, I have added conversion for reaction with modifiers with branches.
Modifier with branches original |
Modifier with branches converted |
Also, for the 4th task, adjusting the arrowhead, I have moved the end point of the line segment to go to the boundary of the glyph.
arrowhead before |
arrowhead after |
Additionally, I have fixed the conversion for FBC package. I have added the conversion for reaction with boolean logic operators.
boolean model |
boolean model converted |
So for the next few days, I have to work on the 2nd task and wrap up the project.
Wednesday, August 10, 2016
week 15
Hello everyone,
Last week, I left off with the following tasks. So, this week I have been working on these. In particular, I have been working on the 1st, 2nd, 3rd, 5th, and 6th tasks from the top.
For the first three tasks, it is still in progress. I am struggling with the conversion of edit points. But I managed to complete the conversion for some of the reaction.
heterodimer association
heterodimer association converted
For the 5th task (adjusting text glyph), the text for the reaction is adjusted to go in the center of reaction. The previous implementation laid the text glyph near a reactant, but now I have changed that to go into center of the reaction
before adjustment after adjustment
For the 6th task, I have added the conversion of gene on CellDesigner Annotation to the SBML fbc package.
Last week, I left off with the following tasks. So, this week I have been working on these. In particular, I have been working on the 1st, 2nd, 3rd, 5th, and 6th tasks from the top.
For the first three tasks, it is still in progress. I am struggling with the conversion of edit points. But I managed to complete the conversion for some of the reaction.
heterodimer association
heterodimer association converted
For the 5th task (adjusting text glyph), the text for the reaction is adjusted to go in the center of reaction. The previous implementation laid the text glyph near a reactant, but now I have changed that to go into center of the reaction
before adjustment after adjustment
For the 6th task, I have added the conversion of gene on CellDesigner Annotation to the SBML fbc package.
fbc converted model |
|
Here is the diagram of how much of the conversion is covered. Blue means it's completed, red means it's not yet completed, green means it's unconvertable. | |
Next week is going to be the last week of Google Summer of Code. Below is the tasks that I still need to work on. I am hoping to complete at least the top 5 tasks before the deadline. |
Wednesday, August 3, 2016
Week 14
Hello everyone,
This week, I have been working on reactions with branches. I was able to convert the branched reactions only with the one that have single reactant and product. For the reaction with multiple reactants/products, the conversion for connecting point is a bit off. I assume there is something wrong in the algorithm.
This week, I have been working on reactions with branches. I was able to convert the branched reactions only with the one that have single reactant and product. For the reaction with multiple reactants/products, the conversion for connecting point is a bit off. I assume there is something wrong in the algorithm.
bend model original |
bend model converted |
bend model 2 original |
bend model 2 converted |
bend model 3 original |
bend model 3 converted |
So far, for the conversion from SBML Layout to CellDesigner annotation, I have completed the following shown in the chart below. Blue is completed, red is incomplete, and green is inconvertable.
Also, the remaining tasks for this project is as below. The dark blue is for conversion from SBML Layout to CellDesigner annotation, and the light blue if for conversion from CellDesigner annotation to SBML Layout. For next week, I will be working on the tasks on the top.
Wednesday, July 27, 2016
Week 13
Hello everyone,
This week I have been working on the reaction conversion from SBML Layout to CellDesigner annotation. Last week, I have completed converting reactions with 1 reactant and 1 product with 1 modifier. For this week, I have completed converting reactions with multiple reactants/ products and with bezier curve.
This week I have been working on the reaction conversion from SBML Layout to CellDesigner annotation. Last week, I have completed converting reactions with 1 reactant and 1 product with 1 modifier. For this week, I have completed converting reactions with multiple reactants/ products and with bezier curve.
Multiple species in SBML Layout |
Multiple species converted |
Multiple species in SBML Layout with bezier |
Multiple species with bezier converted |
While working on these conversions, I encountered two problems. First is defining bezier curve with one reactant and one product. Currently, I can only convert bezier curves only when there are multiple reactants and products like the second model above. I could not figure out a way to define a bezier curve in this situation. The second problem arises when the reaction contains the same species in both reactant and product. Every glyph is mapped to a unique SpeciesAnnotation. When working on the this kind of reaction both reactant and product were referencing the same species annotation. As a result, the output model would turn out as like the model below. To solve the second problem, I had to change up the main algorithm for conversion from SBML Layout to CellDesigner.

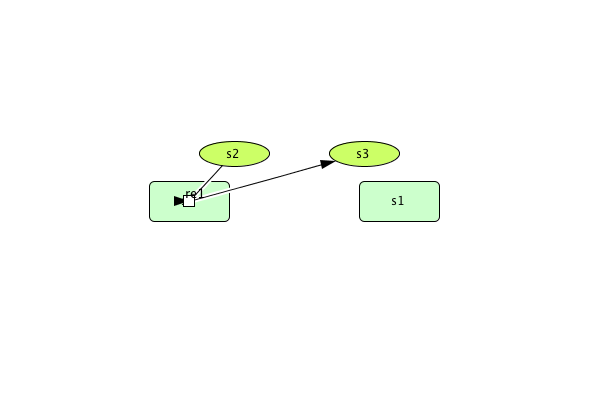

Model with same species as reactant and product
So, here is the chart for converting SBML Layout to CellDesigner Annotation. Blue means it's completed, red means it's not yet completed, green means it's unconvertable.
Since there is only 3 weeks left for GSoC, I have created a brief todo list. Each tasks are ordered in priority levels, where the highest priority task coming up top. From now on, I will be mostly following this list.
Tuesday, July 19, 2016
Week 12
Hi all,
This week, I have been a bit busy but I was able to start on converting the reactions. So far, the converter is able to convert simple reactions without any bending with modifiers.
This week, I have been a bit busy but I was able to start on converting the reactions. So far, the converter is able to convert simple reactions without any bending with modifiers.
Simple reaction original |
Simple reaction converted |
Reaction with modifier original |
Reaction with modifier converted |
The progress so far for converting the SBML Layout to CellDesigner is listed below. For next week, I will be starting on more complex reactions such as those with bezier curves or multiple line segments.
Wednesday, July 13, 2016
Week 11
Hi all,
For the previous 2 weeks, I have been trying to get the CellDesigner to read the converted model from SBML layout. This week, I have finally got some visual result. I can now open the converted model with CellDesigner.
Here are the diagram on how much the conversion is completed. Blue means it's completed, red means it's not yet completed, green means it's unconvertable. After I convert the catalyzed reaction on species, I will start on the reaction conversion.
Also, last week I found out that the math equation was converted incompletely when unmarshaled with JAXB. When converting SBML Layout to CellDesigner Annotation, the output model will be generated using JAXB having incomplete math equation. To overcome this problem, the converter will copy the math equations once the model is outputted with JAXB. The chart below shows the overview of the converter.
For the previous 2 weeks, I have been trying to get the CellDesigner to read the converted model from SBML layout. This week, I have finally got some visual result. I can now open the converted model with CellDesigner.
Species original | Species converted |
Here are the diagram on how much the conversion is completed. Blue means it's completed, red means it's not yet completed, green means it's unconvertable. After I convert the catalyzed reaction on species, I will start on the reaction conversion.
Also, last week I found out that the math equation was converted incompletely when unmarshaled with JAXB. When converting SBML Layout to CellDesigner Annotation, the output model will be generated using JAXB having incomplete math equation. To overcome this problem, the converter will copy the math equations once the model is outputted with JAXB. The chart below shows the overview of the converter.
